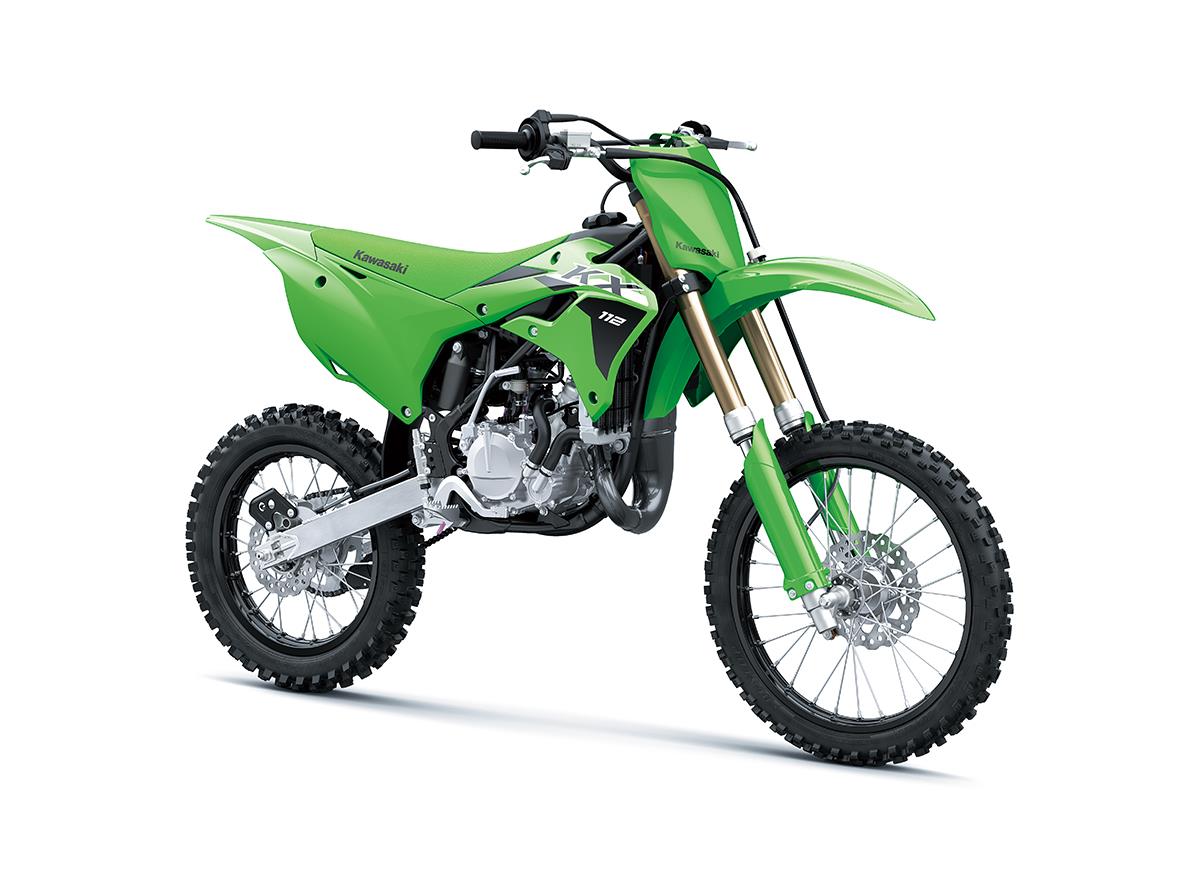

Bridge the gap to full-size bikes with the KX112 motocross bike. We're pushing the limits with a large 112cc two-stroke engine on this supermini. Prep your aspiring rider to transition to big bikes with a winning combination of proportionate power, lightweight handling and an optimized chassis.
Colour - Lime Green - £5,049
Engine
Engine type
Liquid-cooled, 2-stroke Single with KIPS
Displacement
112cc
Bore x stroke
52.5 x 51.6 mm
Compression ratio
9.9:1 (low speed) / 8.6:1 (high speed)
Valve/Induction system
Piston Reed valve
Fuel system
Carburettor: Keihin PWK 28
Ignition
Digital CDI
Starting
Primary kick
Lubrication
Petrol Mix
Frame & Dimensions
Frame type
Perimeter, high-tensile steel
Rake/Trail
108 mm
Wheel travel - front
275 mm
Wheel travel - rear
275 mm
Tyre - front
70/100-19 42M
Tyre - rear
90/100-16 52M
Steering angle - left / right
45/45
Dimensions (L x W x H)
1,920 mm x 765 mm x 1,150 mm
Wheelbase
1,310 mm
Ground Clearance
330 mm
Seat height
870 mm
Fuel capacity
5 litres
Curb Mass
77 kg
Brakes & Suspension
Suspension - front
36 mm inverted telescopic fork with 20-way compression damping
Suspension - rear
Bottom-Link Uni-Trak with adjustable preload, 24-way compression and 21-way rebound damping
Brakes - front
Single 220 mm petal disc. Caliper: Dual-piston
Brakes - rear
Single 184 mm petal disc. Caliper: Single-piston
Price includes;
